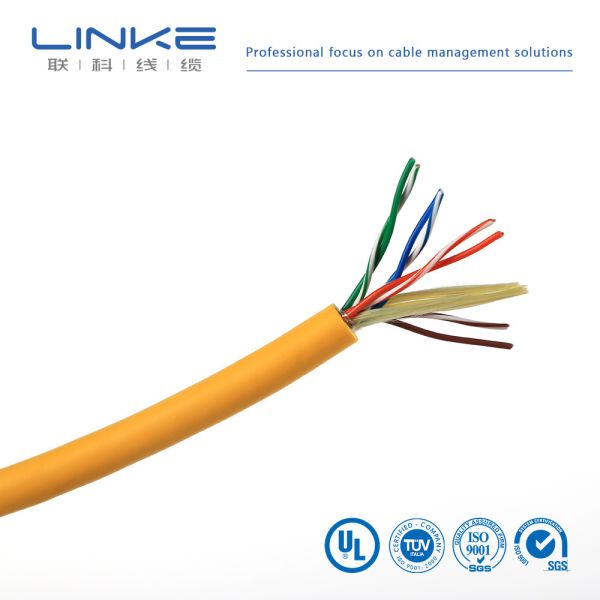

Detailed Photos
Product Description
- Conductor Bare copper
- 4 Twisted Pair 8C
- AWG 26
- Construction (±0.01MM) 7/0.16
- Stranded Dia. (MM) 0.152
- Insulation HD-PE
- Nom.Thickness (±0.02MM) 0.18
- Insulation Dia. ( ±0.05) 1.01
- Sepaiaior /
- Shield/Braid AL/AL-Mg
- Overlap (%) 25%
- Darin wire 7/0.12
- Jacket pvc
- Nom.Thickness (±0.05MM) 0.55
- Outer Dia. ( ±0.2MM) 6.0
Company Profile
Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China.
In the past over 10 years, Linke Cable has been focusing on R&D, production and marketing of
wire and cable. Linke provide various cables&custom cable solutions for all over the world.
We are specialized in EV charging cable, medical cable, silicone cable, spring cable, braided cable,
towlobe cable, UL wire, automotive cable, etc.
At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach to develop better cables for customers and improve the quality of one's life.
Certifications
We past UL1007,UL1185,UL1672,UL10070,UL10483,UL1015,UL1569,UL10012,UL10269
(Single conductor,thermoplastic insulation)
UL2095,UL2129,UL2468,UL2586,UL2725,UL20233,UL20280,UL20963,UL2103,UL2463,UL2517,UL2587,
UL2835,UL20276,UL20549,UL21198,2104,UL2464,UL2576,UL2661,UL2919,UL20279,UL20886,UL21664
ISO9001 and ISO13485,TS16949
CNR- Appliance Wiring Material,
Extruded PVC Insulated Single,rated 105ºC,1000V,ClassI,GroupA,B,or AB, FT1 and/or FT2.
Extruded PVC Non-integral Jacketed Cable, rated 105"C, 1000V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2.
Extruded TPU Non-integral Jacketed Cable, rated 80"C, 300V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2
| Single-conductor, thermoplastic insulation |
| 1007 | 1330 | 1333 | 1591 | 1723 | 10064 | 10369 | |
| 1015 | 1331 | 1569 | 1592 | 1901 | 10070 | 10483 |
| 1185 | 1332 | 1577 | 1672 | 10012 | 10269 | |
| Multiple-conductor, thermoplastic insulation |
| 2095 | 2129 | 2468 | 2586 | 2725 | 20233 | 20280 | 20963 |
| 2103 | 2463 | 2517 | 2587 | 2835 | 20276 | 20549 | 21198 |
| 2104 | 2464 | 2576 | 2661 | 2919 | 20279 | 20886 | 21664 |
| Single-conductor, thermoset insulation |
| 3075 | 3173 | 3320 | 3386 | 3530 | 3689 | 30005 | |
| 3123 | 3212 | 3321 | 3398 | 3577 | 3702 | |
| 3132 | 3266 | 3331 | 3512 | 3644 | 3817 |
| 3135 | 3271 | 3385 | 3529 | 3674 | 3886 |
